6.005 — Software Construction
Spring 2016

Problem Set 2: Poetic Walks

Beta due
Tuesday, March 8, 2016, 10:00 pm
Code reviews due
Thursday, March 10, 2016, 10:00 pm
Final due
Tuesday, March 15, 2016, 10:00 pm

The purpose of this problem set is to practice designing, testing, and implementing abstract data types. This problem set focuses on implementing mutable types where the specifications are provided to you; the next problem set will focus on immutable types where you must choose specifications.

Design Freedom and Restrictions

On several parts of this problem set, the classes and methods will be yours to specify and create, but you must pay attention to the PS2 instructions sections in the provided documentation.

You must satisfy the specifications of the provided interfaces. In some cases, you are permitted to strengthen the provided specifications or add new methods, but in other cases you are not permitted to change them at all.

On this problem set, Didit provides less feedback about the correctness of your code:

  • It is your responsibility to examine Didit feedback and make sure your code compiles and runs properly for grading.
  • However, correctness is your responsibility alone, and you must rely on your own careful specification, testing, and implementation to achieve it.

Please remember to push early: we cannot guarantee timely Didit builds, especially near the problem set deadline.

Get the code

To get started,

  1. Ask Didit to create a remote psets/ps2 repository for you on Athena.
  2. Pull the repo from Athena using Git:

git clone ssh://[username]@athena.dialup.mit.edu/mit/6.005/git/sp16/psets/ps2/[username].git ps2

If you need a refresher on how to create, clone, and import your repository, see Problem Set 0.

Overview

The Java Collections Framework provides many useful data structures for working with collections of objects: lists, maps, queues, sets, and so on. It does not provide a graph data structure. Let’s implement graphs, and then use them to create timeless art of unparalleled brilliance.

Problems 1-3: the type we will implement is Graph<L>, an abstract data type for mutable weighted directed graphs with labeled vertices.

mutable graph
vertices and edges may be added to and removed from the graph
directed edges
edges go from a source vertex to a target vertex
weighted edges
edges are associated with a positive integer weight
labeled vertices
vertices are distinguished by a label of some immutable type, for example they might have String names or Integer IDs

Read the Javadoc documentation for Graph generated from src/graph/Graph.java.

Graph<L> is a generic type similar to List<E> or Map<K,V>. In the specification of List, E is a placeholder for the type of elements in the list. In Map, K and V are placeholders for the types of keys and values. Only later does the client of List or Map choose particular types for these placeholders by constructing, for example, a List<Clown> or a Map<Car,Integer>.

The specification of a generic type is written in terms of the placeholders. For example, the specification of Map<K,V> says that K must be an immutable type: if you want to make something the key in a Map, it shouldn’t be a mutable object because the Map may not work correctly.

In our specification for Graph<L>, we make the same demand about the immutability of type L. Clients of Graph who try to use mutable vertex labels have violated the precondition. They cannot expect correct behavior.

For this problem set, we will implement Graph twice, with two different reps, to practice choosing abstraction functions and rep invariants and preventing rep exposure. There are many good reasons for a library to provide multiple implementations of a type (for example, the ArrayList and LinkedList implementations of List satisfy clients with different performance requirements), and we’re following that model.

Problem 4: with our graph datatype in hand, we will implement GraphPoet, a class for generating poetry using a word affinity graph.

Our poet will be able to take an input like this phrase from Tolkien:

They spoke no more of the small news of the Shire far away, nor of the dark shadows and perils that encompassed them, but of the fair things they had seen in the world together

and generate, with help from The Bard, a stanza addressed to some mysterious figure:

They spoke no love, more than of all the small news of all the Shire far away,
nor thou of all the dark shadows and perils that encompassed them,
but love of all the outward fair in things they had not seen in all the wide world together

Read the Javadoc documentation for GraphPoet generated from src/poet/GraphPoet.java.

GraphPoet will come in handy when you take 21W.772 next semester.


Problem 1: Test Graph​<String>

Devise, document, and implement tests for Graph<String>.

For now, we’ll only test (and then implement) graphs with String vertex labels. Later, we’ll expand to other kinds of labels.

In order to accommodate running our tests on multiple implementations of the Graph interface, here is the setup:

  • The testing strategy and tests for the static Graph.empty() method are in GraphStaticTest.java. Since the method is static, there will be only one implementation, and we only need to run these tests once. We’ve provided these tests. You are free to change or add to them, but you can leave them as-is for this problem.

  • Write your testing strategy and your tests for all the instance methods in GraphInstanceTest.java. In these tests, you must use the emptyInstance() method to get fresh empty graphs, not Graph.empty()! See the provided testInitialVerticesEmpty() for an example.

Java note

Graph­InstanceTest is an abstract class. Abstract classes and subclassing have their uses, but in general should be avoided.

Unlike GraphStaticTest, which works like any other JUnit test class we’ve written, GraphInstanceTest is different because you can’t run it directly. It has a blank waiting to be filled in: the emptyInstance() method that will provide empty Graph objects. In the next problem, we’ll see two subclasses of GraphInstanceTest that fill in the blank by returning empty graphs of different types.

Your tests in GraphInstanceTest must be legal clients of the Graph spec. Any tests specific to your implementations will go in the subclasses in the next problem.

Commit to Git. Once you’re happy with your solution to this problem, commit and push!


Problem 2: Implement Graph​<String>

Now we’ll implement weighted directed graphs with String labels — twice.

For all the classes you write in this problem set:

  • Document the abstraction function and representation invariant.
  • Along with the rep invariant, document how the type prevents rep exposure.
  • Implement checkRep to check the rep invariant.
  • Implement toString with a useful human-readable representation of the abstract value.

In the future, every immutable type you write will override equals and hashCode to implement the Object contract as described in class 15 on equality, but that’s not required for this problem set.

All your classes must have clear documented specifications. This means every method will have a Javadoc comment, except when you use @Override:

  • When a method is specified in an interface and then implemented by a concrete class — for example, add(..) in ConcreteEdgesGraph is specified in Graph — the @Override annotation with no Javadoc comment indicates the method has the same spec. Unless the concrete class needs to strengthen the spec, don’t write it again (DRY).

You can choose either ConcreteEdgesGraph or ConcreteVerticesGraph to write first. There should be no dependence or sharing of code between your two implementations.

2.1. Implement ConcreteEdgesGraph

For ConcreteEdgesGraph, you must use the rep provided:

private final Set<String> vertices = new HashSet<>();
private final List<Edge> edges = new ArrayList<>();

You may not add fields to the rep or choose not to use one of the fields.

Java note

We require that class Edge be declared in Concrete­Edges­Graph.java.

However, you may move Edge to be a static nested class or instance inner class of Concrete­Edges­Graph if desired.

The identical restriction and permission apply to Concrete­Vertices­Graph’s Vertex.

For class Edge, you define the specification and representation; however, Edge must be immutable.

Normally, implementing an immutable type means implementing equals and hashCode as described in class 15 on equality. That’s not required for this problem set. Be careful: not implementing equality means you cannot use equals to compare Edge objects! Specify and implement your own observer operations if you need to compare edges.

After deciding on its spec, devise, document, and implement tests for Edge in Concrete­EdgesGraphTest.java.

Then proceed to implement Edge and ConcreteEdgesGraph.

Be sure to use the @Override annotation on toString to ensure that you are correctly overriding the Object version of the method, not creating a new, different method.

You should strengthen the spec of ConcreteEdgesGraph.toString() and write tests for it in Concrete­EdgesGraphTest.java. Don’t add those tests to GraphInstanceTest, which must test the Graph spec. All Java classes inherit Object.toString() with its very underdetermined spec. Graph doesn’t specify a stronger spec, but your concrete classes can.

Run the tests by right-clicking on ConcreteEdgesGraphTest.java and selecting Run As → JUnit Test.

Commit to Git. Once you’re happy with your solution to this problem, commit and push!

2.2. Implement ConcreteVerticesGraph

For ConcreteVerticesGraph, you must use the rep provided:

private final List<Vertex> vertices = new ArrayList<>();

You may not add fields to the rep.

For class Vertex, you define the specification and representation; however, Vertex must be mutable.

After deciding on its spec, devise, document, and implement tests for Vertex in Concrete­VerticesGraphTest.java.

Then proceed to implement Vertex and ConcreteVerticesGraph.

You should strengthen the spec of ConcreteVerticesGraph.toString() and write tests for it in Concrete­VerticesGraphTest.java. Don’t add those tests to GraphInstanceTest, which must test the Graph spec.

Run the tests by right-clicking on ConcreteVerticesGraphTest.java and selecting Run As → JUnit Test.

Commit to Git. Once you’re happy with your solution to this problem, commit and push!


Problem 3: Implement generic Graph<L>

Nothing in either of your implementations of Graph should rely on the fact that labels are of type String in particular.

The spec says that vertex labels “must be immutable” and are “compared using the equals method.” Let’s change both of our implementations to support vertex labels of any type that meets these conditions.

3.1. Make the implementations generic

  1. Change the declarations of your concrete classes to read:

    public class ConcreteEdgesGraph<L> implements Graph<L> { ... }

    class Edge<L> { ... }

    and:

    public class ConcreteVerticesGraph<L> implements Graph<L> { ... }

    class Vertex<L> { ... }
  2. Update both of your implementations to support any type of vertex label, using placeholder L instead of String. Roughly speaking, you should be able to find-and-replace all the instances of String in your code with L!

    This refactoring will make Concrete­EdgesGraph, Concrete­VerticesGraph, Edge, and Vertex generic types.

    • Previously, you might have declared variables with types like Edge or List<Edge>. Those will need to become Edge<L> and List<Edge<L>>.

    • Similarly, you might have called constructors like new ConcreteEdgesGraph() or new Edge(). Those will need to become, for example, new ConcreteEdgesGraph<String>() and new Edge<L>(). Depending on context, you can use diamond notation <> to avoid writing type parameters twice.

    When you’re done with the conversion, all your instance method tests should pass.

Commit to Git. As always, once you’re happy with your solution to this problem, commit and push!

3.2. Implement Graph.empty()

  1. Pick one of your Graph implementations for clients to use, and implement Graph.empty(). Unlike ArrayList and LinkedList, where clients who only want a List are forced to suffer a dose of rep exposure by calling a concrete constructor, clients of Graph should not be aware of how we’ve implemented it.

  2. Because the implementation of Graph does not know or care about the actual type of the vertex labels, our test suite with String labels is sufficient.

    However, since this is our first generic type, to gain confidence that you do indeed support different types of labels, add a few additional tests to the provided GraphStaticTest.java that create and use Graph instances with a couple different types of (immutable) labels.

Java note

You may use @SafeVarargs where necessary, for example if you write testing helper functions that take a variable number of arguments.

At this point, all of your code (implementations and tests) must have no warnings from the compiler (warnings have a symbol, as opposed to the for errors) and no @SuppressWarnings annotations (which would disable the warning, nice try).

If you cannot figure out how to make your implementations generic while satisfying the Java compiler’s static type checking, please visit lab or office hours, or ask a question on Piazza.

Run all the tests in the project by right-clicking on the test folder and selecting Run As → JUnit Test.

At this point in the problem set, we’ve completed the test-first implementation of Graph.

  • You should have a green bar from JUnit and excellent code coverage from EclEmma.

  • This is a good opportunity for self code review: remove dead code and debugging printlns, DRY up duplication, and so on.

  • And of course, commit and push.


Problem 4: Poetic walks

Graphs — what are they good for? Poetry!

The specification of GraphPoet explains how a poet is initialized with a corpus and then, given an input, uses a word affinity graph defined by that corpus to transform the input poetically.

For example, here’s a small but inspirational corpus:

To explore strange new worlds
To seek out new life and new civilizations

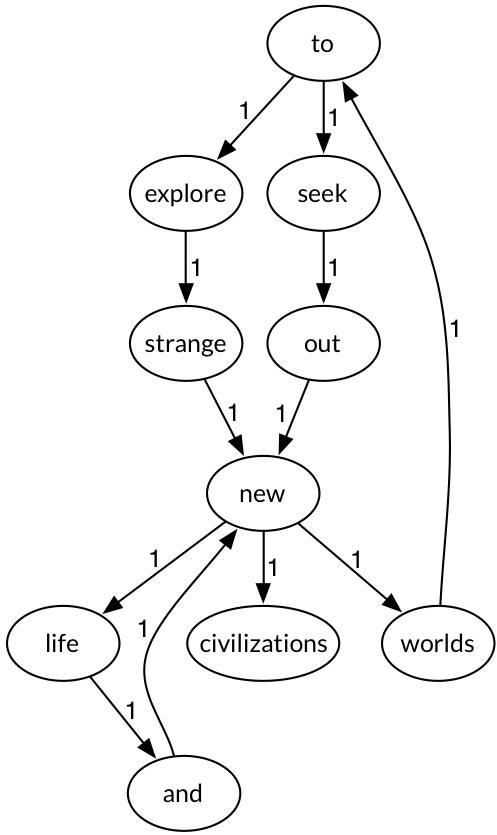

GraphPoet will use this corpus to generate a word affinity graph where:

  • vertices are case-insensitive words, and
  • edge weights are in-order adjacency counts.

The graph is shown on the right. In this example, all the edges have weight 1 because no word pair is repeated.

From there, given this dry bit of business-speak input:

Seek to explore new and exciting synergies!

the poet will use the graph to generate a poem by inserting (where possible) a bridge word between each pair of input words:

w1w2path?bridge word

seek

→

to

no two-edge-long path from seek to to

—

to

→

explore

no two-edge-long path from to to explore

—

explore

→

new

one two-edge-long path from explore to new with weight 2

strange

new

→

and

one two-edge-long path from new to and with weight 2

life

and

→

exciting

no vertex exciting

—

exciting

→

synergies!

no vertices exciting or synergies!

—

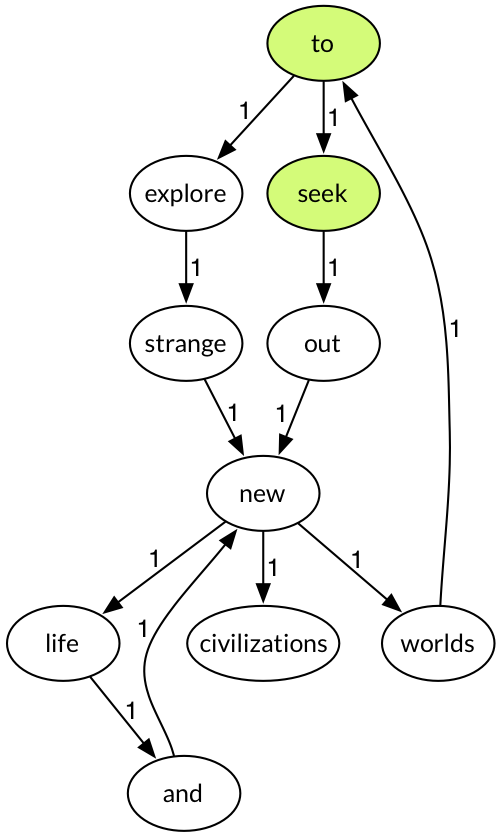

Hover over rows above to visualize poem generation on the right. In this example, the outcome is deterministic since no word pair has multiple bridge words tied for maximum weight. The resulting output poem is:

Seek to explore strange new life and exciting synergies!

Exegesis is left as an exercise for the reader.

4.1. Test GraphPoet

Devise, document, and implement tests for GraphPoet in GraphPoetTest.java.

You are free to add additional methods to GraphPoet, but you may not change the signatures of the required methods. You are free to strengthen the specifications of the required methods, but you may not weaken them. Note how this might mean your tests for GraphPoet are not usable against someone else’s implementation, because you’ve strengthened or added to the spec.

Your tests should make use of one or more sample corpus files. Put those files in the test/poet directory — the same directory as GraphPoetTest.java. Reference them in the code with, for example:

new File("test/poet/seven-words.txt")

While you still must test and implement GraphPoet(File), remember that you may add operations to GraphPoet. Adding a creator that takes a String, for example, might simplify your tests for poem(..) at the cost of additional tests for the new creator.

4.2. Implement GraphPoet

Implement GraphPoet in GraphPoet.java.

You must use Graph in the rep of GraphPoet, but the implementation is otherwise entirely up to you.

For reading in corpus files, there are at least three Java APIs to consider:

Java note

Another option, if you want to program in a functional style: use Files.lines(..), which returns a Stream<String>.

  • FileReader is the standard class for reading from a file. Wrapping the FileReader in a BufferedReader allows you to use the convenient readLine() method to read whole lines at a time.

  • The utility function Files.readAllLines(..) will read all the lines from a Path. Our poet takes a File, but File provides a toPath() method to obtain a Path.

  • Class Scanner is designed for breaking up input text into pieces. It provides many features and you’ll need to read its specs carefully.

4.3. Graph poetry slam

If you want, update the main(..) method in Main.java with a cool example: an interesting poem from minimal input, a surprising poem given the corpus and input, or something else cool.

Put the corpus for your example in src/poet — the same directory as mugar-omni-theater.txt.


Before you’re done

  • Make sure you have documented specifications, in the form of properly-formatted Javadoc comments, for all your types and operations.

  • Make sure you have documented abstraction functions and representation invariants, in the form of a comment near the field declarations, for all your implementations.

    With the rep invariant, also say how the type prevents rep exposure.

    Make sure all types use checkRep to check the rep invariant and implement toString with a useful human-readable representation of the abstract value.

  • To gain static checking of the correct signature, use @Override when you override toString.

    Also use @Override when a class implements an interface method, to remind readers where they can find the spec.

  • Make sure you have a thorough, principled test suite for every type.


Submitting

Make sure you commit AND push your work to your repository on Athena. We will use the state of your repository on Athena as of 10:00pm on the deadline date. When you git push, the continuous build system attempts to compile your code and run some basic tests. You can always review your build results at didit.csail.mit.edu.

Didit feedback is provided on a best-effort basis:

  • There is no guarantee that Didit tests will run within any particular timeframe, or at all. If you push code close to the deadline, the large number of submissions will slow the turnaround time before your code is examined.
  • If you commit and push right before the deadline, the Didit build does not have to complete in order for that commit to be graded.
  • Passing some or all of the public tests on Didit is no guarantee that you will pass the full battery of autograding tests — but failing them is almost sure to mean lost points on the problem set.
